2003-02-05

GT2061 - SELMA LIBBY MCNEILL LIBBY TK

County: FRESNO
State: CALIFORNIA

PUBLISHED DATA
Lat: 36° 33.817
Long: 119° 36.390
Alt: 0
Designation: SELMA LIBBY MCNEILL LIBBY TK
Marker Type: NGS Benchmark
Setting: setting not listed - see description
Stability:

Documented History (by the NGS)
1/1/1944 by CGS (MONUMENTED)
DESCRIBED BY COAST AND GEODETIC SURVEY 1944 (JCS) STATION IS LOCATED IN THE S EDGE OF THE TOWN OF SELMA, AT THE LIBBY, MC NEILL AND LIBBY CANNERY, ON THE E SIDE OF THE BUILDINGS. IT IS 300 FEET E OF THE CENTER LINE OF FRONT STREET AND 155 FEET S OF THE CENTER LINE OF CENTER STREET. IT IS A SILVER-COLORED, ELEVATED, STEEL WATER TANK ABOUT 80 FEET HIGH. ITS APEX WAS THE POINT OF INTERSECTION.


FOUND DATA
Lat: NA
Long: NA
Alt: NA

Found it at 17:55, 05 February 2003. Found it as described, in good condition and still in use. The site with the tank is southeast of Center Street and lies between East Front Street and East Grove Street. The site is fenced and an occupation near the tank was not possible at this time. WGS84 coordinates were taken from Center Street at the Tucker Street intersection (midway between East Front Street and East Grove Street).

WGS84 coordinates found by 5 minute occupation with 6 strong satellites and 1 WAAS satellite.

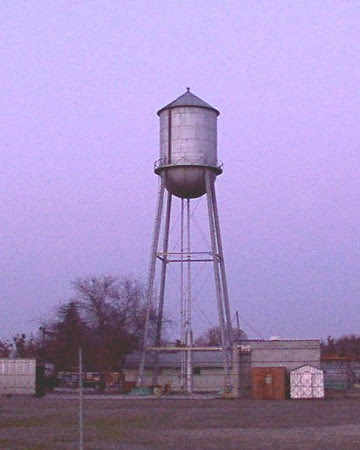

The tank as seen from the southwest on East Front Street.


The tank and the GPSr as seen from the southwest on East Front Street.

GT1259 - R 670

County: TULARE
State: CALIFORNIA

PUBLISHED DATA
Lat: 36° 32.783
Long: 119° 27.983
Alt: 324.1
Designation: R 670
Marker Type: bench mark disk
Setting: set into the top of a round concrete monument
Stability: May hold, but of type commonly subject to surface motion.

Documented History (by the NGS)
1/1/1942 by CGS (MONUMENTED)
DESCRIBED BY COAST AND GEODETIC SURVEY 1942 4.6 MI W FROM DINUBA. ALONG ROAD TO KINGSBURG, 100 FEET NORTHWEST OF MILLER MAIL BOX. 45 FEET SOUTHWEST OF RIGHT-ANGLE CURVE TO DINUBA, 30 FEET WEST OF CENTER LINE OF ROAD. WITNESS POST SET. A STANDARD DISK, STAMPED R 670 1942 AND SET IN THE TOP OF A CONCRETE POST.


FOUND DATA
Lat: NA
Long: NA
Alt: NA

The right-angle curve in the description is now an intersection. There is no mailbox within 500 feet to the south of the intersection, or is there any evidence of a residence within 500 feet to the south of the intersection.
The cardinal directions from the roads and the mailbox put the position on the southwest corner of the intersection. There are presently some large underground gas structures in that position.

GT1258 - Q 670

County: TULARE
State: CALIFORNIA

PUBLISHED DATA
Lat: 36° 31.900
Long: 119° 27.967
Alt: 320.5
Designation: Q 670
Marker Type: bench mark disk
Setting: light structures
Stability: Mark of questionable or unknown stability.

Documented History (by the NGS)
Unknown by CGS (MONUMENTED)

1/1/1949 by USGS (GOOD)
DESCRIBED BY US GEOLOGICAL SURVEY 1949 5.6 MI W FROM DINUBA. ALONG ROAD TO KINGSBURG, 6 MILES EAST OF KINGSBURG P. O., 33 FT. EAST OF CENTER LINE OF ROAD, 14 FT. SOUTH OF ROAD RUNNING EAST, IN CONCRETE HEAD WALL OVER IRRIGATION DITCH. WITNESS POST SET.


FOUND DATA
Lat: NA
Long: NA
Alt: NA

The headwall in the 1949 description has been rebuilt and the irrigation ditch on the west side of the road has been piped underground. It looks as though the entire culvert undercrossing has been moved about 20-30 feet south.

The cardinal ties to the roads put the position in the top of the ditch bank about 15 feet north of the ditch, with no evidence of a concrete headwall. The existing headwall (built with stacked, wet bags of concrete mix) is not a suitable place to mount a benchmark.
